Wattage
100 or 60 Watts Selectable (Global)
Channels & Modes
3 Channels / 3 Modes
Mode Voicings styles
Ch. 1 = Mark IIC+ Clean or Boost Ch. 2 = Mark IIC+ Gain or Shred Ch. 3 = Mark IIC+ Gain or Shred
Graphic Eq Reverb Fx Solo
Fully Buffered Series Tube FX Loop (MIDI Switchable)
Foot switchable Functions
Ch. 1, Ch. 2, & Ch. 3, Reverb, Graphic EQ 1, & Graphic EQ 2
Speakers Impedance
1x12” Celestion Custom 90 Speaker – 8 ohms
Weight
59 lbs. (26.76 kg.)
Dimensions
18 1/4" H x 18 3/4" W x 11 1/2" D 46.36 cm H x 47.63 cm W x 29.21 cm D
Available Formats

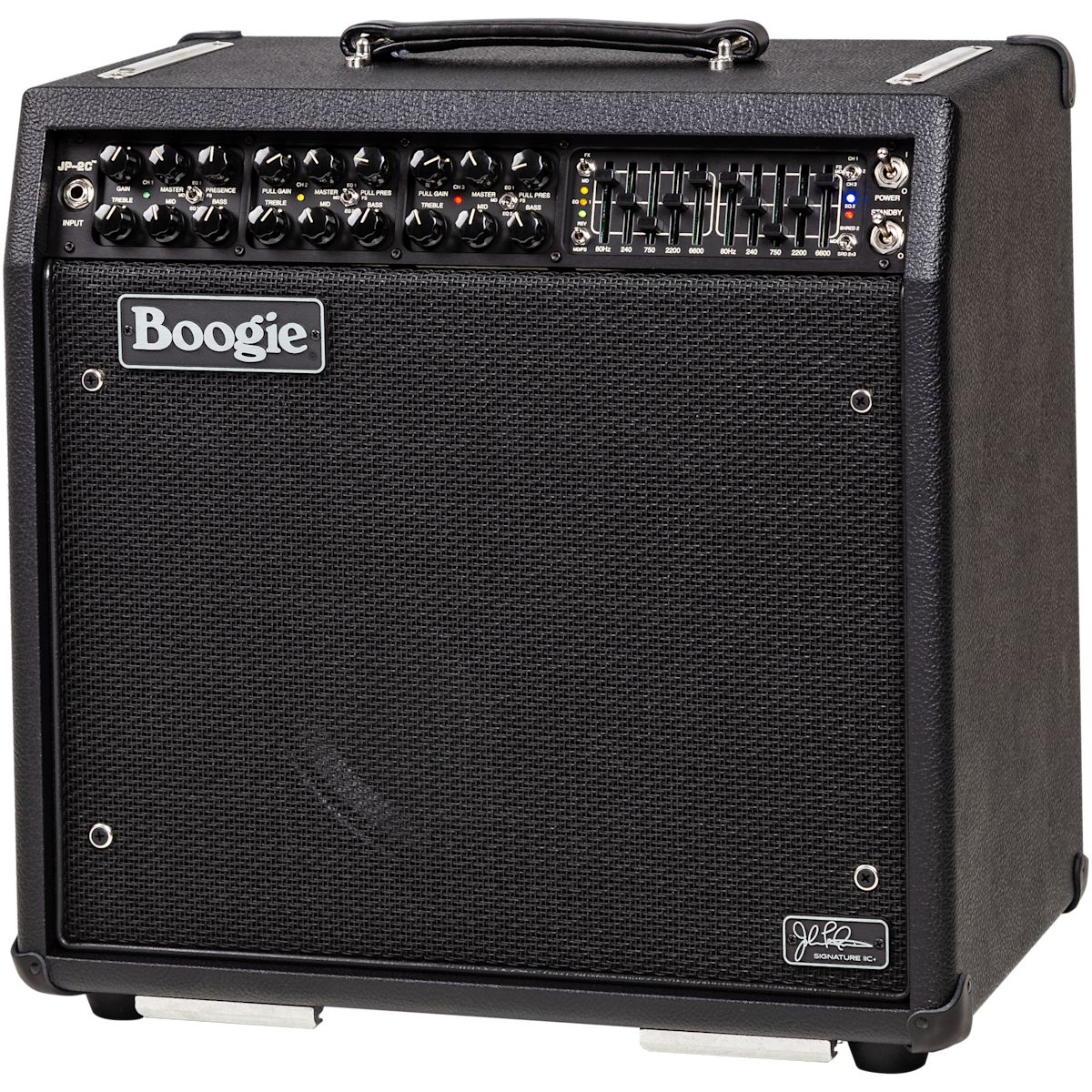

1x12 Combo
Controls
Channel 1 Features: Independent Gain, Treble, Mid/Boost (patent applied for; doubles as a standard Midrange Tone Control from 1 to 5 AND a Variable Gain Boost Control from 5 to 10, providing precise levels of sweet harmonic overdrive), Bass, Presence, Reverb (rear panel), Assignment Switch for Dual 5-Band Graphic EQs (EQ 1 or EQ 2 - On, Off, or Footswitchable) & Master Controls Channel 2 & 3 Features: Shred Mode (Assignment Switch in lower right corner of EQ section - MIDI Switchable), Independent Gain with Pull Gain Boost, Treble, Middle, Bass, Presence with Pull Frequency Shift, Reverb (rear panel), Assignment Switch for Dual 5-Band Graphic EQs (EQ 1 or EQ 2 - On, Off, or Footswitchable) & Master Controls
Amp Type
Tube
Rectifier Type
Silicon Diodes
Rectifier Tubes
n/a
Variac PowerSwitch
n/a
Preamp Tubes
5x MESA 12AX7
Power Amp Tubes
4x MESA 6L6
Maintenance Free Fixed Bias
Yes
Wattages Quick Reference
100 or 60 Watts via 100/60 Watt Global Power Switch - See Power Amp Details for more information
Built In Power Amp Attenuation
n/a
Power Amp Details Class Wattage
Class A/B Power with selectable, global 100/60 Power Switch - Provides two power options: Choose 2 power tubes, producing 60 Watts of small block-power or all 4 power tubes, producing 100 Watts of big-block horsepower and authority.
Number Of Style Modes
Three
Number Of Style Modes Per Channel
Two
Channel Controls
Channel 1 Features: Independent Gain, Treble, Mid/Boost (patent applied for; doubles as a standard Midrange Tone Control from 1 to 5 AND a Variable Gain Boost Control from 5 to 10, providing precise levels of sweet harmonic overdrive), Bass, Presence, Reverb (rear panel), Assignment Switch for Dual 5-Band Graphic EQs (EQ 1 or EQ 2 - On, Off or Footswitchable) & Master Controls Channel 2 & 3 Features: Shred Mode (Assignment Switch in lower right corner of EQ section - MIDI Switchable), Independent Gain w/Pull Gain Boost, Treble, Middle, Bass, Presence w/Pull Frequency Shift, Reverb (rear panel), Assignment Switch for Dual 5-Band Graphic EQs (EQ 1 or EQ 2 - On, Off or Footswitchable) & Master Controls
Graphic Eq And/or Contour
TWO Selectable 5-Band Graphic EQs (Footswitchable, Channel Assignable, or Off)
Reverb Effects Bypass Options
Footswitchable, All-Tube, Long-Tank Spring Reverb with Independent Channel Controls
Effects Loop Bypass Options
Fully Buffered Series Tube FX Loop (MIDI Switchable)
Global Output Level Control
n/a
Global Solo Level Control
n/a
True Bypass Options
n/a
External Switching Jack Options And/or Midi
MIDI Switchable/Programmable via Control Change and Program Change messages, with 256 Preset Locations (MIDI IN, MIDI Thru/Out, MIDI Channel & Store Switches) – Controls Channels 1, 2, 3, EQ 1, EQ 2, Shred, Reverb, & FX Loop
Speaker Outputs
One 16 Ohm, One 8 Ohm, and Two 4 Ohm
Cabinet Simulation Direct Live recording Output
Built-in MESA CabClone™ Cab Simulator with Internal Amp Load & Headphone Output - Featuring Closed Back, Open Back, & Vintage Cabinet Simulations, Speaker On/Off, Ground Lift, and +4/-10 Output Level Switches
Internal Amp Load For SpeakerLess Performance
Yes (see Cabinet Simulation for more information)
Headphone Output
Yes (see Cabinet Simulation for more information)
Slave Output
Yes
Extra Features
n/a
Footswitch

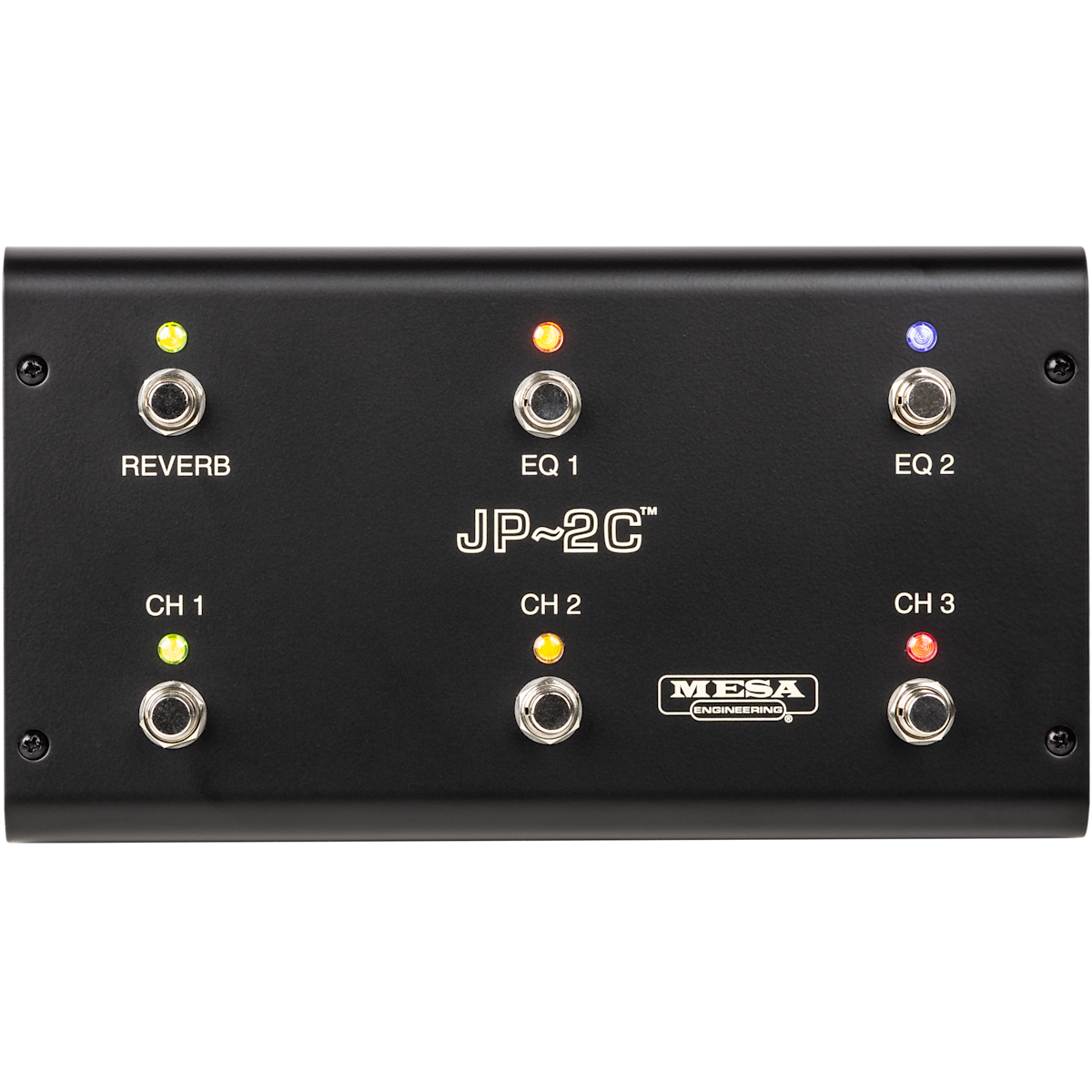

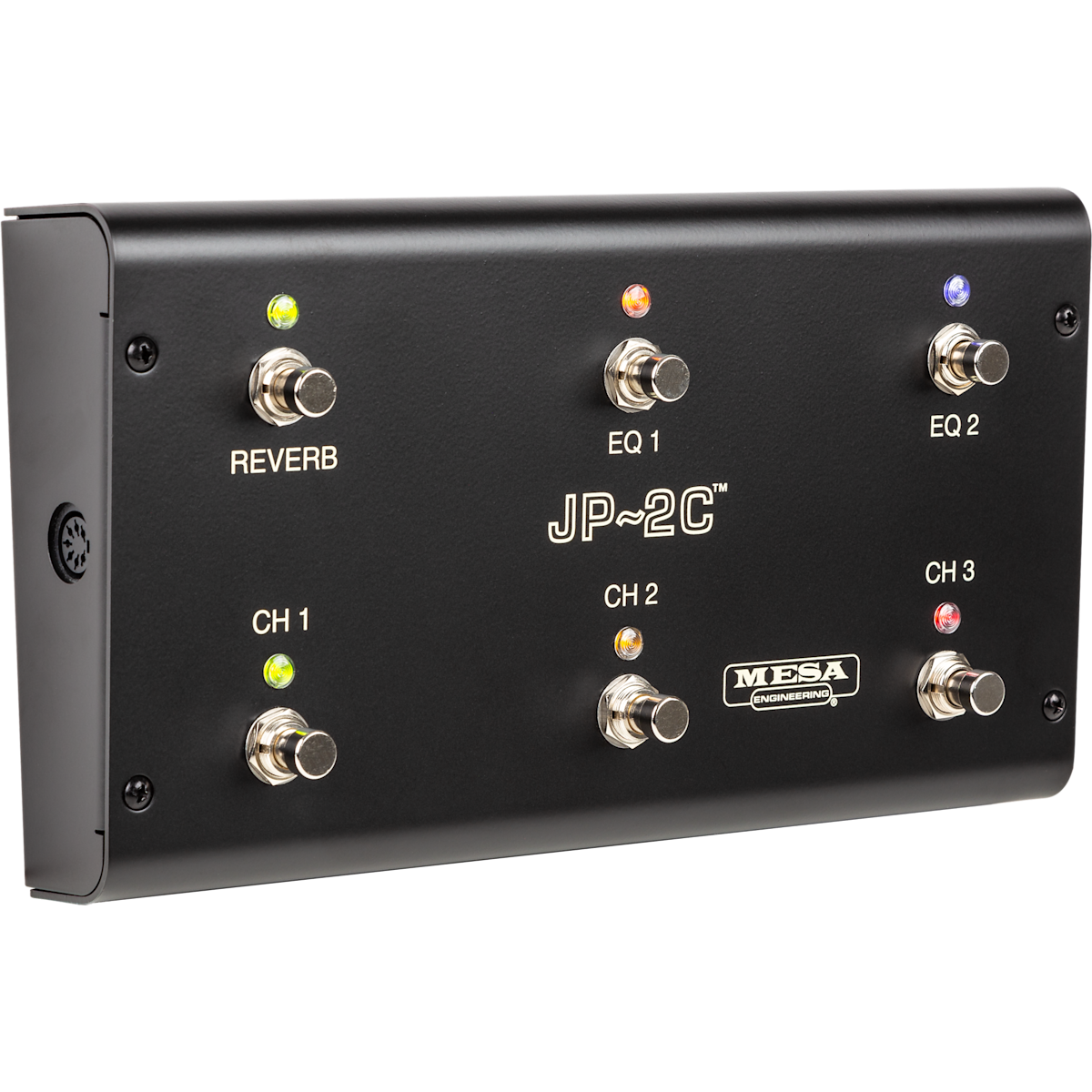

Included - 3x3 - 6 Button Footswitch (Bottom Row: Ch. 1, Ch. 2 & Ch. 3 - Top Row: Reverb, Graphic EQ 1, & Graphic EQ 2)
Slip Cover
Included - Fitted Slipcover
Cabinet Material
Marine Grade, Baltic Birch
Standard Finish Options (no extra cost)
Black Bronco Vinyl, Black Jute Grille, Black Handle & Corners
Custom Finish Options
See Custom Finish Gallery
Speakers Impedance
1 - 8 Ohm Celestion Custom 90 / Total Load = 8 Ohms
Casters
n/a
Extra Features
n/a
Weight
59 lbs. (26.76 kg.)
Height
18 1/4" / 46.36 cm
Width
18 3/4" / 47.63 cm
Depth
11 1/2" / 29.21 cm
Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
