{{ labels['key-features'] }}
-
{{ featureCallout.Title }}
Preamp Type
Solid-State Preamp derived from Subway D-800+
Graphic Eq Reverb Fx Solo
Variable High-Pass Filter (30Hz – 125Hz), Variable Voicing (Flat to Vintage Scoop), Fully Active 4-Band EQ (+/- 12dB of Bass, Low-Mid, High-Mid, Treble) with Sweepable (variable) Low-Mid (150Hz-1800Hz) & High-Mid (300Hz-5000Hz) Frequency Controls with Deep Switch (for enhanced low-end) & Bright Switch (for enhanced top-end)
Foot switchable Functions
Variable, Footswitchable Boost & Footswitchable Mute
Weight
2 Lbs.
Dimensions
2" H x 8" W x 5.5" D
Available Formats
D.I. Box Preamp
Preamp Type
Solid-State Preamp derived from Subway D-800+
Preamp Tubes
n/a
Convention Or Fan Cooling
Convection
Number Of Channels & Input Options
1x 1/4"
Preamp Details
Solid-State Preamp featuring Input Gain, Footswitchable Variable Boost, Variable High-Pass Filter (30Hz – 150Hz), Variable Voicing (Flat to Vintage Scoop), Fully Active 4-Band EQ (+/- 12dB of Bass, Low-Mid, High-Mid, Treble) with Sweepable (variable) Low-Mid (150Hz-1800Hz) & High-Mid (300Hz-5000Hz) Frequency Controls, Deep Switch (for enhanced low-end), Bright Switch (for enhanced top-end) and Master Volume
Effects Loop
Fully Buffered Series FX Loop
Boost (solo) Level Control
Variable, Footswitchable Boost

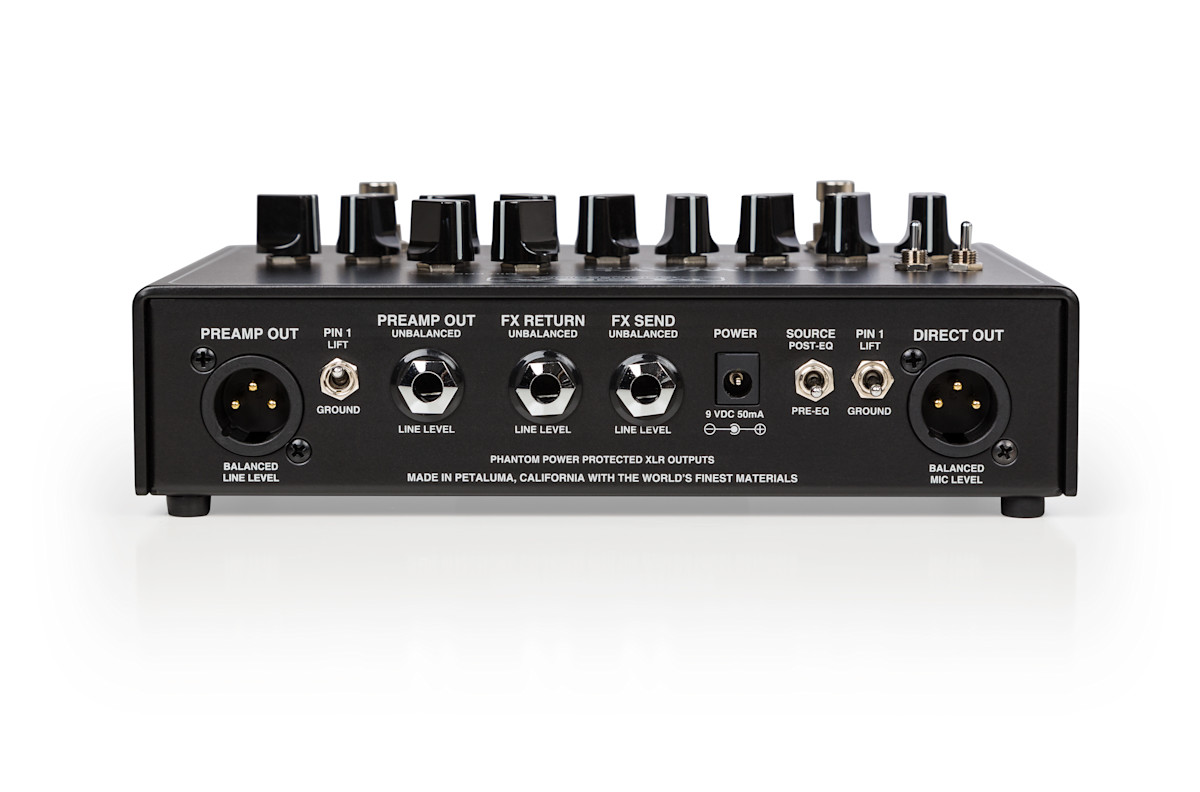

Output Options
Tuner Output, Balanced XLR Mic Level (DI) Out with Pre/Post & Ground Lift Switches, Line Level Preamp Outputs - Unbalanced & Balanced with Ground Lift Switch (drives any power amp), FX Loop Send (& Return)
Tuner Output/Mute
Tuner Output with Footswitchable Mute Switch
External Switching Jack Options
n/a
Extra Preamp Features
AC or Battery Powered, auto-switches to battery if AC fails and battery is installed
Footswitch
n/a
Slip Cover
n/a
Weight
2 Lbs.
Height
2"
Width
8"
Depth
5.5"
Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
