{{ labels['key-features'] }}
-
{{ featureCallout.Title }}
Wattage
Multi-Watt™ 10 or 25 (Channel Assignable)
Channels & Modes
2 Channels / 4 Modes
Mode Voicings styles
Ch. 1 = Clean or Pushed Ch. 2 = Vintage or Modern
Graphic Eq Reverb Fx Solo
FX Loop
Foot switchable Functions
Ch. 1/2
Speakers Impedance
n/a
Weight
12 Lbs.
Dimensions
5 7/8" H x 12 5/8" W x 6 3/4" D
Available Formats
Head
Amp Type
Tube
Rectifier Type
Silicon Diodes
Rectifier Tubes
n/a
Variac PowerSwitch
n/a
Preamp Tubes
5x Mesa 12AX7
Power Amp Tubes
2x Mesa EL-84
Maintenance Free Fixed Bias
Yes
Wattages Quick Reference
10 or 25 Watts - Channel Assignable - See Power Amp Details for more information
Built In Power Amp Attenuation
n/a
Power Amp Details Class Wattage
Mesa's Patented Multi-Watt™ (Patent 7,602,927) Power Amp, featuring Dyna-Watt™ technology, providing two power levels, each with different wiring configurations (Pentode/Triode) via two 10/25 Watt Power Switches: Choose from 2 power tubes operating in Class A/B Triode for lush harmonics and a sweet, liquid feel at lower volumes, producing 10 Watts or; 2 tubes operating in Mesa's proprietary Dyna-Watt™ Class A/B Pentode for maximum power, punch and clarity, producing 25 Watts
Number Of Style Modes
Four
Number Of Style Modes Per Channel
Two
Channel Controls
Each Channel features Independent 2-Position Style Mode Switch, 10/25 Watt Multi-Watt™ Switch, Gain, Treble, Mid, Bass, Presence and Master Control
Graphic Eq And/or Contour
n/a
Reverb Effects Bypass Options
n/a
Effects Loop Bypass Options
Fully Buffered Series FX Loop
Global Output Level Control
n/a
Global Solo Level Control
n/a
True Bypass Options
n/a
External Switching Jack Options And/or Midi
n/a

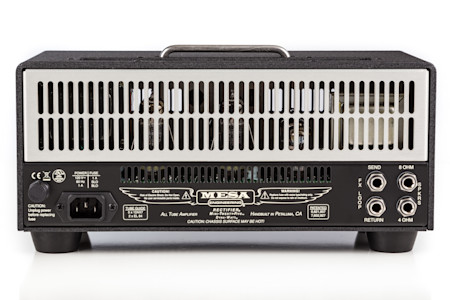

Speaker Outputs
One 8 Ohm and One 4 Ohm
Cabinet Simulation Direct Live recording Output
n/a
Internal Amp Load For SpeakerLess Performance
n/a
Headphone Output
n/a
Slave Output
n/a
Extra Features
n/a
Footswitch
Included - 1 Button Footswitch (Ch. 1/2)
Slip Cover
Included - Padded Gig Bag w/Strap
Cabinet Material
Metal
Standard Finish Options (no extra cost)
Polished Diamond Plate & Black Crinkle Powder Coat with Red LEDs
Custom Finish Options
See Custom Finish Gallery
Speakers Impedance
n/a
Casters
n/a
Extra Features
n/a
Weight
12 Lbs.
Height
5 7/8"
Width
12 5/8"
Depth
6 3/4"
Disclaimer: In order to continually improve the design, quality and performance of our products and to use the best materials at all times, MESA/Boogie reserves the right to substitute or change specifications (including parts or coatings) without notice.
